SIDS FOR DELHI AIRPORT

The following clearances are to be used by all aircraft leaving Indira Gandhi International Airport. Full clearance should be given at all times. The departure controller can give direct headings when the traffic is airborne.

Factors common to all SID's are:

1. All radials are those of DPN VOR unless otherwise specified.
2. ATC at its discretion will specify alternate routings if considered necessary.
3. Aircraft departing runway 28/27 will commence left turn before DP NDB/abeam DP NDB.
4. Aircraft departing runway 10/09 will commence right turn before LOM(PL)/DH NDB.
5. All Aircrafts shall intercept appropriate radial within 10nm.

Route Designator	Rwy	SIDS	Vectors

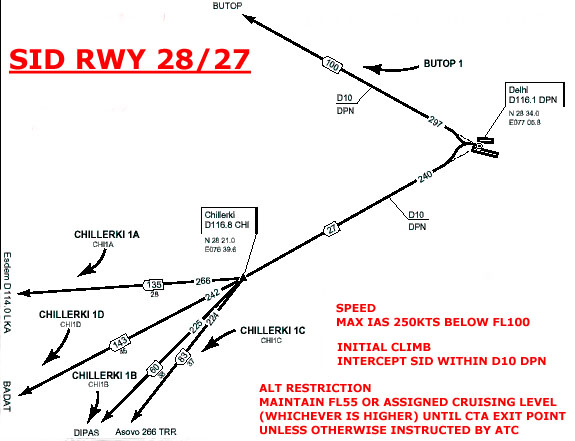

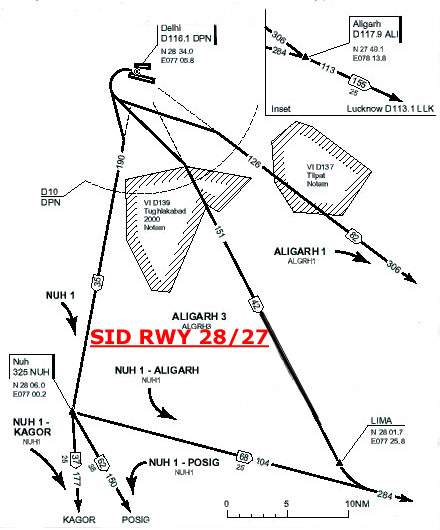

R460 East	28	ALIGARH 1	Left to intercept DPN VOR R-127 to ALI VOR/DME and then to LLK VOR/DME
	27	ALIGARH 3

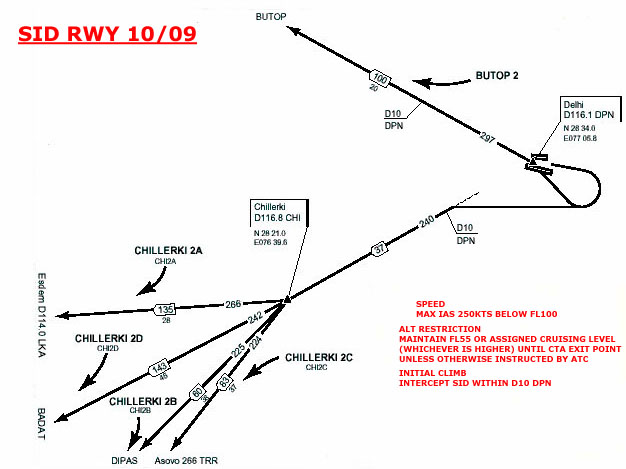

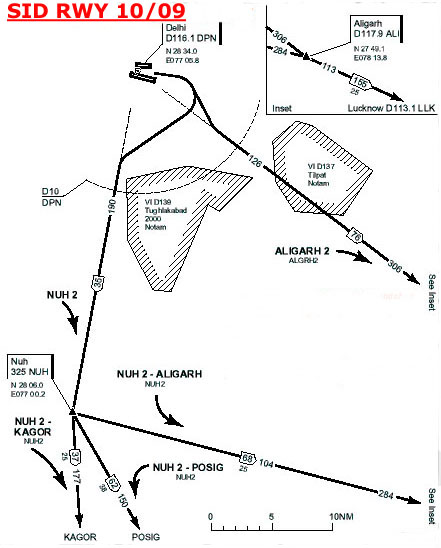

	10	ALIGARH 2	Right to intercept DPN VOR R-127 to ALI VOR/DME and then to LLK VOR/DME
	09	ALIGARH 4
	28	SAKARAS 1A	Left to intercept DPN VOR R-188 to SKA VOR then to ALI VOR/DME and then to LLK VOR/DME
	27	SAKARAS 3A
	10	SAKARAS 2A	Right to intercept DPN VOR R-188 to SKA VOR then to ALI VOR/DME and then to LLK VOR/DME
	09	SAKARAS 4A
A474 South	28	CHILLERKI 1C	Left to intercept DPN VOR R-240 to CHI VOR/DME and then to TRR NDB
	27	CHILLERKI 3C
	10	CHILLERKI 2C	Right to intercept DPN VOR R-240 to CHI VOR/DME and then to TRR NDB
	09	CHILLERKI 4C
G452 West	28	CHILLERKI 1A	Left to intercept DPN VOR R-240 to CHI VOR/DME and then to LKA VOR/DME
	27	CHILLERKI 3A
	10	CHILLERKI 2A	Right to intercept DPN VOR R-240 to CHI VOR/DME and then to LKA VOR/DME
	09	CHILLERKI 4A
W13/R462 South	28	CHILLERKI 1B	Left to intercept DPN VOR R-240 to CHI VOR/DME and then to DIPAS
	27	CHILLERKI 3B
	10	CHILLERKI 2B	Right to intercept DPN VOR R-240 to CHI VOR/DME and then to DIPAS
	09	CHILLERKI 4B
W65 South	28	CHILLERKI 1D	Left to intercept DPN VOR R-240 to CHI VOR/DME and then to BADAT
	27	CHILLERKI 3D
	10	CHILLERKI 2D	Right to intercept DPN VOR R-240 to CHI VOR/DME and then to BADAT
	09	CHILLERKI 4D
W30/W31/A466 West	28	BUTOP 1	Left to intercept DPN VOR R-297 to BUTOP and then to ASARI
	27	BUTOP 3
	10	BUTOP 2	Right to intercept DPN VOR R-297 to BUTOP and then to ASARI
	09	BUTOP 4
W20/B579 South	28	AKELA 1	Left to intercept DPN VOR R-193 to AKELA and then to INTIL
	27	AKELA 3
	10	AKELA 2	Right to intercept DPN VOR R-193 to AKELA and then to INTIL
	09	AKELA 4
W33/W10 South	28	LETPU 1	Left to intercept DPN VOR R-162 to LETPU and then to POSIG
	27	LETPU 3
	10	LETPU 2	Right to intercept DPN VOR R-162 to LETPU and then to POSIG
	09	LETPU 4
	28	SAKARAS 1B	Left to intercept DPN VOR R-188 to SKA VOR and then to POSIG
	27	SAKARAS 3B
	10	SAKARAS 2B	Right to intercept DPN VOR R-188 to SKA VOR and then to POSIG
	09	SAKARAS 4B
W35/W39	28	SARSAWA 1	Left to heading 030 to intercept DPN VOR R-011 to SP NDB
	27	SARSAWA 3
	10	SARSAWA 2	Right heading 030 to intercept DPN VOR R-011 to SP NDB
	09	SARSAWA 4

There are no STAR's for Delhi Airport at present. All aircrafts are guided in through Centre and Approach controllers.
